What a Drain Camera Inspection Report Shows

A blocked gully, a failed pre-purchase check, or a consent query can all lead to the same question - what exactly will a drain camera inspection report tell you? If you are making decisions about a home, a renovation, or a construction site, the report matters because it turns an underground asset into something visible, documented and usable.

For some clients, that means identifying why wastewater is not flowing properly. For others, it means confirming pipe location, checking condition before works begin, or providing evidence for council or Watercare-related requirements. The value is not just in putting a camera into a drain. It is in getting clear findings that support the next step.

Why the report matters more than the footage

Raw CCTV footage can be useful, but on its own it often leaves too much open to interpretation. A homeowner may see water, pipe walls and junctions without knowing whether the line is serviceable or close to failure. A builder or architect may need more than a video file if drainage information is feeding into design, excavation planning or consent documentation.

A proper report translates the inspection into practical information. It records what was inspected, where it was inspected from, what the camera found, and what those findings mean in context. That is the difference between seeing a pipe and understanding its condition.

This is particularly important when the outcome has cost, compliance or construction implications. If tree roots are present, the report should show where and to what extent. If there is a dip holding water, a break, a displaced joint or evidence of unauthorised connections, that needs to be documented in a way that can be reviewed by owners, contractors and project stakeholders.

What is included in a drain camera inspection report

The exact format can vary depending on the site and purpose of the inspection, but most reports should cover a few core areas.

Site and asset details

A report should identify the property or site, the date of inspection, and the lines or sections inspected. On more complex sites, this may include references to inspection points, boundary traps, manholes, gullies or specific branch lines. If drain location is part of the work, the report may also refer to mapped pipe runs and depths.

Without this basic framework, the findings can be hard to apply. On a commercial site or multi-dwelling property, that becomes a real problem.

Pipe condition and defects

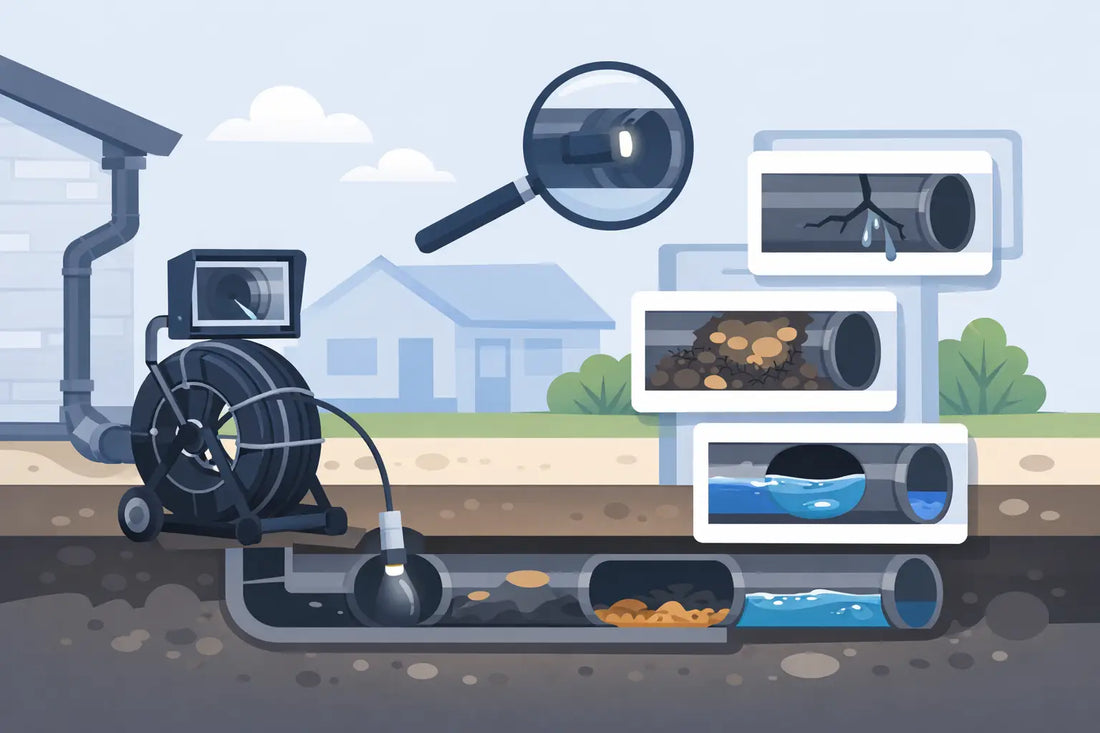

This is the part most clients look for first. The report should record the observable condition of the drain and any defects seen during the CCTV survey. That may include cracks, fractures, root intrusion, open joints, displaced sections, corrosion, scale build-up, debris, sagging lines or partial collapses.

Good reporting also distinguishes between minor wear and issues likely to affect performance. Not every imperfection means immediate repair is required. Some defects are stable and manageable in the short term, while others point to a system that is already failing or likely to fail under load.

Drain layout and flow path

Many drainage issues start with uncertainty about where pipes actually run. A camera inspection report can help confirm the flow direction, connection points, changes in pipe size or material, and the relationship between one line and another.

For renovation and development work, this can be just as important as the condition findings. You cannot plan excavation, additions or works over drainage if the layout is still guesswork.

Images, footage references and observations

A useful report usually includes still images or clear references to footage sections showing key findings. This gives the client something specific to review rather than relying on broad statements.

The best reports avoid vague wording. Saying a line is in poor condition is less useful than stating that roots were observed entering through a joint at a measured distance from the access point, with associated obstruction and trapped water downstream.

Recommendations

Recommendations should match the actual issue. If the line simply needs cleaning and reinspection, that should be stated. If excavation, relaying, further tracing or a more detailed compliance assessment is needed, the report should say so plainly.

This is where experience matters. Overcalling defects leads to unnecessary cost. Undercalling them can create bigger failures later.

When a drain camera inspection report is most useful

A lot of clients only arrange CCTV inspection after a problem appears. That makes sense, but it is not the only time a report adds value.

For homeowners, a report is often useful before buying a property, especially if there are older drains, signs of previous drainage work, or recurring blockage history. It can also help before major landscaping, extensions or driveway works where underground services may be affected.

For architects, surveyors and builders, the report is often part of early-stage due diligence. It helps define existing infrastructure, identify risks before excavation starts, and support discussions around design constraints or consent pathways. If there are existing public or private drains running through a proposed building area, accurate reporting becomes critical.

On larger projects, a drain camera inspection report can also support works over assessments or clarify whether an existing line is suitable to remain in service. If not, redesign or diversion may be needed. It is better to find that out on paper than after concrete has been poured.

What the report can and cannot confirm

A CCTV inspection is a strong diagnostic tool, but it does have limits. It shows the internal condition of the pipe at the time of inspection. It can reveal visible structural defects, obstructions, standing water, and layout clues. If paired with location equipment, it can also help identify where the line sits underground.

What it cannot always do is tell you everything about the surrounding ground conditions or predict exactly when a marginal pipe will fail. A line may appear serviceable on camera but still be poorly supported externally. In other cases, heavy debris or water levels may limit visibility, and the report will need to note that.

That is why context matters. A technical report should explain any limitations in the inspection so clients know how much confidence to place in the findings. Clear reporting is not just about what was seen. It is also about stating what could not be verified.

How to read a drain camera inspection report properly

If you are not from a drainage or construction background, the report can seem more technical than it really is. Start with the location and scope - what lines were inspected, and from where. Then look at the key findings, especially anything affecting flow, structure or compliance.

Next, check whether the recommendations are immediate, planned, or conditional. A recommendation to monitor a minor defect is very different from a recommendation to excavate and repair a collapsed section. The language should make that distinction clear.

For project teams, it is also worth checking whether the report answers the actual project question. A basic fault-finding inspection may not be enough if you need pipe positions for design or evidence for consent documentation. The right report depends on the job.

Why specialist reporting makes a difference

Drainage inspection is not the same as general plumbing troubleshooting. A specialist approach tends to produce better documentation because the focus is on the condition, location and function of the drainage network, not just restoring immediate flow.

That matters when the report may be used by multiple parties - homeowner, builder, designer, engineer or council reviewer. Each of them needs information they can rely on. A rushed inspection with limited notes can create more confusion than it solves.

In Auckland, where properties range from older residential sections to complex redevelopment sites, reporting often needs to serve both practical and formal purposes. One job may be about identifying root intrusion in a clay line. The next may involve mapping drainage under a proposed building footprint and documenting findings for a works over process. The method needs to suit the outcome.

Drainage TV Ltd works in that specialist space, where the inspection is only part of the job and the reporting is what allows clients to move forward with confidence.

Getting value from the report after the inspection

The best time to use the report is straight away, while the site context is still fresh and any follow-up work can be planned efficiently. If repairs are needed, the report helps define the scope. If no urgent faults are found, it becomes a useful record of condition at that point in time.

That record can be valuable later, especially if a property changes hands, a dispute arises over asset condition, or future works need to reference the original drainage layout. It is easier to make good decisions when the underground facts have already been documented properly.

A drain camera inspection report should do more than describe what the camera saw. It should give you a clear basis for action, whether that means repair, design, compliance, or peace of mind. When the report is accurate and practical, the next decision gets a lot simpler.
