What a Subdivision Drainage Investigation Finds

A proposed lot layout can look workable until an existing sewer, stormwater line or manhole sits beneath a future driveway, building platform or service corridor. A subdivision drainage investigation gives the project team reliable information about what is underground before decisions become costly to change. It replaces assumptions, incomplete records and surface clues with camera evidence, pipe locations and practical site information.

For Auckland subdivision projects, this early investigation can help identify drainage constraints before design is fixed, consent documentation is prepared or machinery arrives on site. It is particularly useful on established properties where old private drains, public assets and unrecorded alterations may all be present.

Why drainage needs checking before subdivision design

Drainage is often out of sight until it creates a conflict. A sewer may run diagonally through a rear site, a stormwater line may be deeper than expected, or an old connection may serve more than one dwelling. Site plans and available records provide a useful starting point, but they do not always show the current route, depth, condition or ownership of every pipe.

That uncertainty affects more than drainage design. It can influence proposed building footprints, accessways, retaining, excavation methods, new service connections and the location of future dwellings. If the issue is found late, a project may need redesign, additional engineering input or unexpected drainage works.

A proper investigation is not simply a check for blockages. It establishes what assets are present, where they run, whether they can be inspected, and whether their condition or location creates a development risk. The result gives architects, surveyors, designers, builders and property owners a clearer basis for planning.

What a subdivision drainage investigation involves

The scope depends on the site, the available access points and the proposed development. In many cases, the investigation begins with a review of the site layout and known drainage information, followed by an on-site CCTV inspection of accessible sewer and stormwater lines.

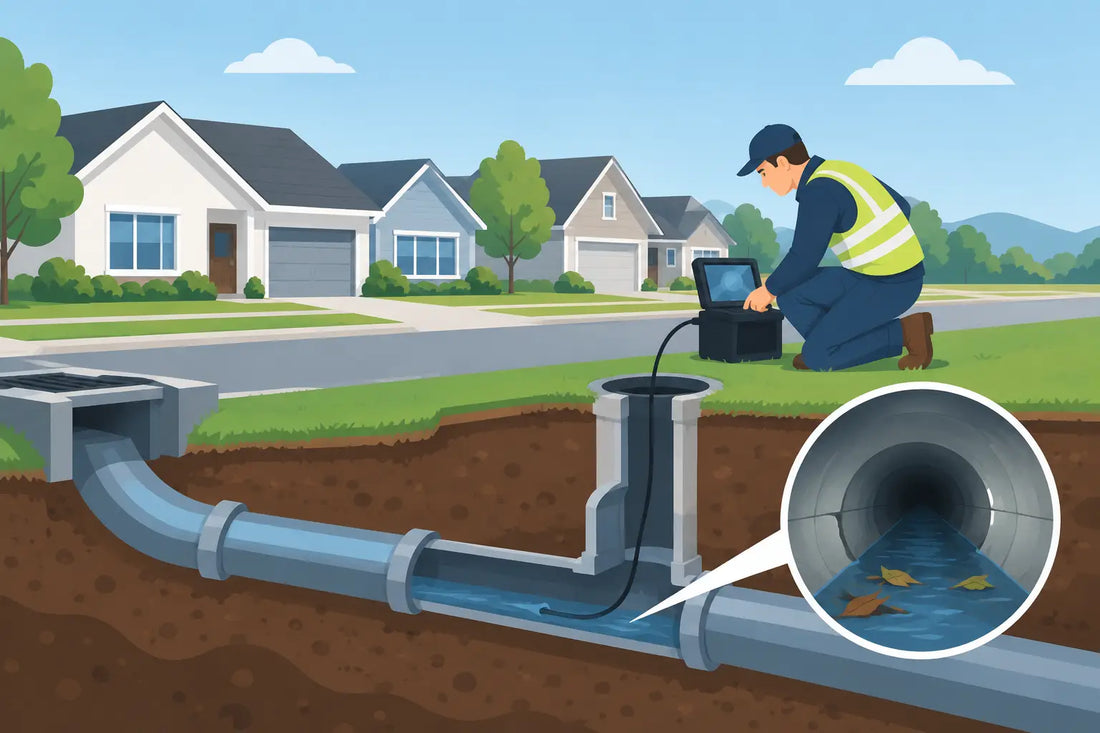

A specialist camera is sent through the pipe to record its internal condition. This can reveal cracked or displaced joints, root intrusion, breaks, standing water, poor connections, obstructions, redundant pipework and changes in pipe material or direction. These details matter because a pipe that appears acceptable on a plan may not be suitable for its expected role, or it may require repair before further works proceed.

Drain location equipment is then used to trace the camera from above ground. This enables the approximate alignment and depth of the inspected pipe to be recorded in relation to boundaries, buildings and proposed works. Where appropriate, the findings can be set out in a site plan and supported by footage, observations and photographs.

The aim is practical site intelligence: where the drainage is, what condition it is in, and what the project team needs to consider next.

Locating private and public drainage assets

Subdivision sites may contain private lateral drains as well as council or Watercare-owned assets. Identifying the difference is important because responsibility, approval requirements and construction limitations can vary.

An investigation can help establish whether an apparent drain serves the existing house, adjoining properties or a wider network. It may also identify manholes that have been covered by landscaping, paving or previous building work. These findings should be assessed alongside available asset information and project requirements, rather than relying on a single source alone.

Where a proposal involves building over or close to a council or Watercare-owned asset, a works over assessment may be required. Works over is a specific requirement for building over these assets. A CCTV survey and accurate drain location often form an important part of the information needed to assess that situation, but they are not a substitute for the formal approval process.

Assessing condition before new work adds pressure

Existing drainage can be affected by age, ground movement, root growth and earlier repairs. Subdivision work can introduce additional risks through excavation, vehicle loading, new connections and changes to stormwater flows.

For example, a line with minor root intrusion may still be functioning when inspected. However, if that pipe will sit beneath a new accessway or become difficult to reach after development, leaving it untreated may create a much larger problem later. Conversely, a visible defect does not always mean full replacement is necessary. Its severity, location, pipe type, future use and accessibility all need to be considered.

This is why clear evidence is valuable. It allows the relevant designer or drainage contractor to recommend proportionate work, rather than guessing from an above-ground symptom.

Common issues found on subdivision sites

Every site is different, but several findings occur regularly on older Auckland properties and infill development sites. These include drains that do not follow expected boundary lines, unknown branches serving sheds or former dwellings, and pipework that has been altered without updated documentation.

Drainage conflicts are also common where the original property was developed long before its current subdivision potential was considered. A pipe may run through the middle of land that is now intended for a separate title, or a shared private line may not be appropriate for the proposed arrangement.

Other frequent concerns include insufficient fall, damaged earthenware pipes, displaced joints, silt build-up in stormwater lines and connections that are difficult to access. A camera inspection does not make every hidden section visible. Severe blockages, collapsed pipework, inaccessible entry points or complex networks can limit the survey. When that occurs, the report should make the limitation clear and identify sensible next steps, such as clearing the line, exposing a point for access or carrying out further investigation.

When to arrange the investigation

The best time is usually before the subdivision layout and building positions are locked in. Early information gives the greatest flexibility. Moving a proposed dwelling or accessway on paper is far easier than relocating services after consent or construction has started.

For a simple development, the drainage investigation may be commissioned during initial feasibility work. On more complex sites, it may sit alongside topographical surveying, geotechnical assessment and concept design. It is also useful before purchasing a site where drainage constraints could affect the viability or cost of the intended project.

Waiting until a contractor encounters a pipe during excavation usually reduces options. Work may pause while the asset is identified, the design is reviewed and the required approvals are clarified. Early investigation does not remove every project risk, but it gives the team time to manage known constraints properly.

What useful drainage documentation should provide

Good drainage documentation should be clear enough for both technical professionals and property owners to understand. It should identify the inspected lines, record observations from the CCTV survey and show the located drainage route in a useful site context where the scope allows.

The report should distinguish between confirmed findings and limitations. If a line could not be fully surveyed, that needs to be stated. If the ownership or status of an asset requires confirmation from the relevant authority, that should be identified rather than assumed.

For design and compliance work, the value is in having evidence that can be reviewed by the appropriate people. Footage, a written condition report and a drainage location plan can assist with design decisions, works over considerations and discussions around repair or diversion requirements. The exact documents needed will depend on the project, so it is sensible to establish requirements early with the designer, surveyor or consent specialist.

Choosing an inspection scope that fits the site

A small two-lot project and a multi-dwelling development do not need the same level of investigation. The right scope depends on the property history, the proposed layout, available drainage access and the consequences of getting it wrong.

For an established residential property, inspecting and locating the main sewer and stormwater lines may be enough to identify obvious constraints. A larger or more complicated site may need wider coverage, investigation of multiple access points, detailed mapping or follow-up work after lines are cleared.

Drainage TV Ltd focuses on CCTV drain surveys and drain location, providing practical evidence for project planning rather than general plumbing guesswork. The objective is to provide clear findings the wider project team can act on.

A subdivision does not have to be delayed by every pipe found underground. But the pipes need to be known, their condition understood and their future access considered before the site is divided around them. That is how a drainage investigation becomes a useful planning tool rather than an expensive late-stage discovery.
