When You Need a Drain Survey for Subdivision

A proposed subdivision can look straightforward on a site plan, then become complicated as soon as the existing drainage is investigated. A drain survey for subdivision gives the project team reliable information about underground pipe routes, connection points and defects before design decisions, earthworks or construction commitments are made.

For Auckland projects, this information can affect lot layout, service corridors, connection design, construction sequencing and consent documentation. It also reduces the risk of finding an unknown pipe after the new driveway, dwelling footprint or retaining work has already been set out.

Why drainage information matters before subdivision design

Subdivision work changes how a site is serviced. One existing house may have private stormwater and wastewater lines that do not suit two or more new lots. Drains may cross proposed boundaries, run through a future building area, or connect in a way that is not obvious from historic plans.

Records are useful, but they should not be treated as proof of current site conditions. Older properties may have altered drainage, unrecorded connections, abandoned sections of pipe or lines that have shifted over time. A CCTV inspection and drain location survey establish what is actually present underground.

That clarity helps the designer make informed decisions early. If a wastewater line runs through the centre of a proposed rear lot, for example, the team can assess whether the layout needs changing, whether a new connection is required, or whether protection and access provisions will be needed. Identifying this after works begin is generally more expensive and can delay the programme.

What a drain survey for subdivision should establish

The right scope depends on the property, the scale of development and the information already available. At a minimum, the survey should distinguish between stormwater and wastewater drainage, identify accessible drainage assets, and record their route and condition.

Pipe routes and connection points

Drain location work traces the route of existing pipes and marks relevant features such as inspection openings, gully traps, manholes and connection points. These locations can then be shown on a site plan for architects, surveyors, engineers and builders.

Accurate route information matters where new boundaries, vehicle crossings, retaining walls or foundations are proposed. It can also reveal whether an existing line serves more than one area of the property or potentially extends beyond the title boundary.

Condition and defects

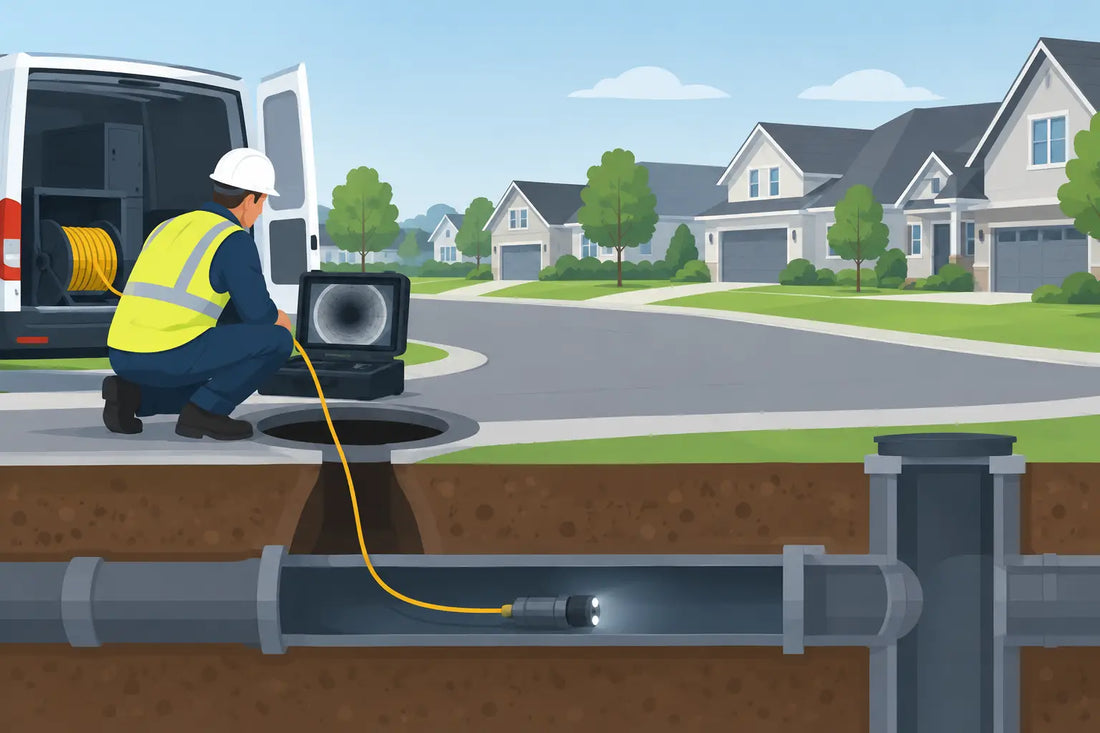

A CCTV drain camera inspection shows the internal condition of accessible pipes. It can identify cracking, displaced joints, root intrusion, sags, blockages, corrosion, deformation and poor previous repairs. Video evidence is particularly useful because the project team can see the issue rather than relying on a verbal description.

Not every defect means the drain must be replaced immediately. A minor root intrusion in a line that will be decommissioned as part of the development may have limited significance. A fractured pipe intended to serve a new lot is a different matter. The finding needs to be considered alongside the proposed design and expected future use.

Depth, direction and practical constraints

A survey can provide valuable information on drainage direction, access points and, where obtained, depths or levels. This assists with assessing whether a proposed connection is practical and whether site works may conflict with existing services.

However, a CCTV survey is not a substitute for full engineering design. Camera access can be limited by blockages, pipe diameter, bends or buried access points. Pipe capacity, hydraulic performance and final connection requirements may need separate assessment by the appropriate designer or engineer. A useful report is clear about what was inspected, what could not be inspected and where further investigation is recommended.

When to arrange the survey

The best time is before a subdivision layout is locked in. Ideally, drainage investigation occurs during early feasibility or concept design, when moving a boundary or adjusting a building location is still relatively simple.

For more complex sites, an initial survey may be followed by targeted investigation once design options are developed. This is common where a long shared driveway, rear-lot development, steep site or older drainage network creates uncertainty.

A survey is also worthwhile before purchasing a property for development. The cost of investigation is modest compared with redesigning a proposal around failing drains, inaccessible public assets or an unexpected need for extensive new drainage works.

Public assets, private drains and works over requirements

One of the most important parts of subdivision planning is understanding who owns and controls the drainage asset. Some pipes are private, while others may be council or Watercare assets. The route of a public asset can place restrictions on building work and access requirements across a site.

Where a proposed building, structure or development work is near or over a council or Watercare-owned asset, a works over assessment may be required. This is a separate compliance matter from a standard drain survey, but the survey information often provides the evidence needed to identify the issue early.

Leaving this until construction can cause major disruption. A proposed dwelling, garage, deck or retaining structure may need redesign if it compromises required access or protection for the asset. Confirming pipe locations and ownership at the outset gives the project team time to respond properly.

A practical investigation process

A well-organised survey starts with the purpose of the project. The inspector should know whether the site is being assessed for a two-lot subdivision, a multi-unit development, a new dwelling at the rear, or a broader consent and construction programme. That context helps focus the inspection on the drains most likely to affect the work.

On site, accessible drainage points are inspected by CCTV camera and relevant pipe routes are located from above ground. The survey should capture clear footage, observations on pipe condition, marked locations and practical notes on limitations or further action.

The resulting documentation should be usable by the wider project team. A report with labelled findings and a drainage plan is far more useful than raw video alone. It allows the engineer to consider servicing options, the surveyor to assess boundary implications, and the builder to plan around known underground constraints.

For large or staged developments, it can be sensible to retain the survey material as part of the site information package. It provides a record of the original drainage condition before construction activity begins and can reduce confusion between contractors later in the programme.

Common issues found on subdivision sites

Older Auckland properties often present a mix of drainage eras and materials. A site may contain clay pipework, later PVC additions and drains that have been altered during previous renovations. The most common problems are not always dramatic, but they can have a significant effect on design and construction.

Typical findings include pipes crossing future lot boundaries, shared private lines with unclear responsibilities, roots entering old joints, drainage under a planned building footprint, and inspection points hidden below paving or landscaping. Stormwater may discharge in an unexpected direction, while wastewater pipes may have limited fall for a new connection.

The key is not to assume every issue has one standard remedy. Sometimes a simple diversion or repair is appropriate. In other cases, the most practical solution is to revise the proposed layout before detailed design proceeds. Early evidence gives the project team choices. Late discoveries usually remove them.

Choosing the right survey scope

A basic camera inspection may be suitable where the route is known and the question is simply whether an existing line is in sound condition. A subdivision project usually benefits from a broader scope that combines CCTV inspection, pipe locating, site marking and a documented plan.

The scope should also reflect access. If drains cannot be reached through existing openings, additional work may be necessary to expose or clear access points. If a line is blocked, the blockage may need to be cleared before a full internal inspection can be completed. These are practical limitations, not failures of the survey process, and they should be allowed for in the programme.

Drainage TV Ltd provides specialist CCTV drainage inspections and location information for projects where accurate underground evidence is needed. The aim is straightforward: give homeowners and project professionals a clear picture of the drainage that may affect the next decision.

Before the subdivision plan moves from concept to commitment, confirm what lies beneath the site. A clear drainage record gives the wider team a sound basis for design, consent discussions and construction planning.
