How to Locate Sewer Pipes Before You Dig

A new deck footing, extension, pool or drainage repair can become expensive very quickly when a buried pipe is found by accident. Knowing how to locate sewer pipes before excavation gives you a clearer plan, protects existing drainage and helps avoid delays once work is underway. For Auckland properties in particular, older private drains, later additions and incomplete records can make assumptions risky.

A sewer pipe cannot be located reliably from one clue alone. The best result comes from comparing available plans with what is visible on site, then confirming the route and condition through a CCTV inspection and electronic locating where required.

How to locate sewer pipes accurately

Start by establishing what information already exists. Property files, drainage plans, as-built drawings and previous renovation documents may show the original wastewater layout, connection point and inspection openings. For a development or consent-related project, survey information and utility records may also be relevant.

These documents are useful starting points, not final proof. Drainage may have been altered without updated drawings, and older plans can be schematic rather than precise. A line shown running beside a boundary may be a reasonable guide, but it is not a safe excavation mark.

On site, look for practical evidence. Inspection points, gully traps, manholes, vent pipes and wastewater fixtures can indicate where a drain begins and the direction it is likely to take. The route generally runs from toilets, bathrooms, laundries and kitchens towards the property connection, but changes in level, additions to the house and separate drainage systems can alter that route.

Do not assume every visible opening is part of the sewer system. Stormwater and wastewater drains are separate systems, even though both may have access points around the property. Correctly identifying the pipe is essential before any work is planned.

Use CCTV inspection to confirm the pipe route

A CCTV drain survey is the most dependable way to investigate an accessible sewer line from the inside. A specialist camera is inserted through an appropriate access point and travels through the pipe, recording its condition and identifying key features such as junctions, bends, connections, cracks, displaced sections, root intrusion or blockages.

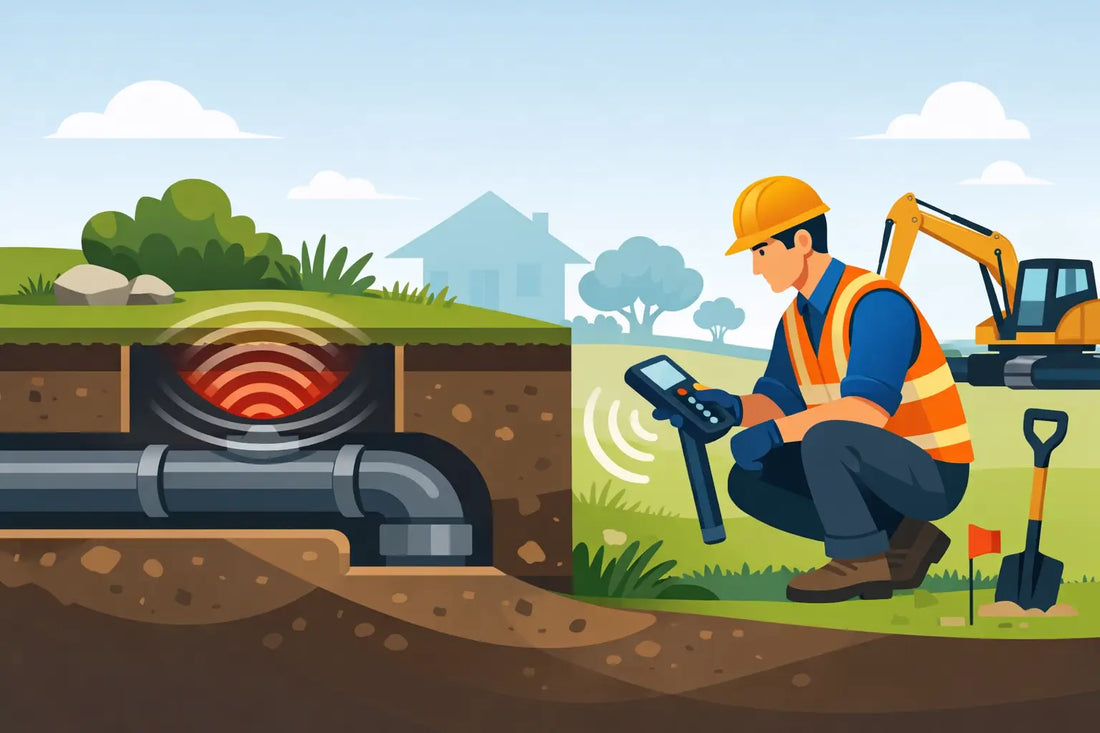

For pipe location work, the camera system can be fitted with a transmitting sonde. A technician tracks the sonde above ground with a receiver as the camera moves through the drain. This allows the line to be marked on the surface and helps establish the position of important points, including the connection, bends and defects.

This approach provides more than a route on the ground. It shows whether the pipe is suitable to remain where it is. A pipe that is cracked, poorly graded or full of roots may affect construction decisions, even if it sits outside the planned excavation area. Finding that information before work begins is far less disruptive than discovering it after concrete has been poured or foundations are in place.

Depth readings should be treated with appropriate care. Electronic locating provides a useful field estimate, but ground conditions, pipe depth, access constraints and the position of the transmitter can affect accuracy. Where exact levels are critical for design or construction, the drainage location should be considered alongside a site survey and the project’s required tolerances.

Mark the route and record the findings

Once the sewer line has been traced, its position should be marked clearly enough for the immediate purpose. For a homeowner planning a small fence or garden project, surface marks and a straightforward explanation may be sufficient. For a building project, renovation or consent application, the findings usually need to be documented in a more durable form.

A useful drainage location record may include the pipe route, accessible inspection points, approximate depths, pipe diameter where identifiable, direction of flow, junctions and visible defects. CCTV footage and still images provide evidence of the pipe condition at the time of inspection. A site plan can then give architects, builders and surveyors practical information they can use during design and site set-out.

It is also worth recording any areas that could not be inspected. A pipe may be inaccessible because of a blockage, collapsed section, unsuitable access point or connection arrangement. Clear reporting of limitations is part of a reliable investigation. It prevents a drawing from being treated as more certain than the inspection allows.

Check whether the drain is private or public

One of the most important questions is who owns the asset. A sewer pipe within a site may be a private drain serving the property, but some properties are affected by council or Watercare-owned wastewater assets. The route may cross a section of land where a new building, extension, retaining wall or other structure is proposed.

If work is planned over or near a public asset, there may be specific approval and reporting requirements. Works over is a requirement where building over council or Watercare-owned assets is proposed. The exact process depends on the asset, the project and the authority’s requirements, so identifying the pipe early gives the project team time to respond properly.

This is where a CCTV survey and drainage location can support more than fault finding. The information can help establish whether an asset is present, where it runs, its condition and whether the planned work creates a conflict. It may also identify the need to adjust the design, allow for protection measures or obtain further engineering advice.

Do not rely on trial digging alone

Trial holes have a place when exact exposure is needed, particularly before excavation close to a known service. However, digging to find a pipe without first investigating the likely route is inefficient and can damage the very asset you are trying to locate. It can also disturb landscaping, hard surfaces and other underground services unnecessarily.

A sensible sequence is to review available records, inspect the site, carry out CCTV and electronic locating, then use carefully controlled exposure only where it is genuinely needed. This reduces uncertainty before machinery arrives on site.

Locating a sewer pipe is not the same as clearing it. A blocked drain can prevent a camera from reaching the full length of the line, and significant defects may need to be addressed before a complete inspection is possible. In those cases, the initial survey still provides useful evidence about the accessible section and the likely cause of the issue.

When professional drainage locating is needed

Professional investigation is particularly worthwhile before an extension, new dwelling, subdivision work, driveway construction, retaining work, pool installation or any excavation near the existing house. It is also useful when buying a property with limited drainage information, dealing with repeat blockages, or planning work where the location of the sewer connection is unclear.

For straightforward properties, an experienced technician can often trace an accessible line efficiently and provide practical findings. Complex sites may require coordination with the builder, surveyor, architect or engineer, especially where multiple dwellings, shared drainage, steep sites or public assets are involved. The level of documentation should match the decision being made.

Drainage TV Ltd specialises in CCTV drain surveys and drain location work, providing site-based evidence that helps homeowners and project teams make informed decisions before committing to excavation or construction.

Before the first peg is driven or the excavator arrives, confirm what is below the surface. A properly located sewer pipe gives everyone on site a better starting point and turns an underground unknown into a manageable part of the project.
